Model: PU-30 · Direct Factory Supply

PU-30 Low Modulus Polyurethane Joint Sealant for Concrete

1-component moisture-curing polyurethane sealant engineered specifically for precast concrete wall joints, civil masonry, and indoor expansion seams. 25 Shore A low modulus cushions building vibration without cohesive spalling.

25 ± 5 A
Shore A Hardness

0.40 MPa
Tensile Modulus

≥ 600%
Elongation at Break

±25%
Joint Movement

Chat on WhatsApp

PU-30 Technical Specifications

Verified parameters under ASTM & ISO standard laboratory testing conditions.

Property	Standard / Method	Verified Value	Engineering Function
Chemical Base	Polyurethane	1-Component Moisture Curing	No mixing; cures with air moisture
Hardness (Shore A)	ISO 868	25 ± 5 A	Ultra-low modulus cushions concrete movement
Tensile Modulus	ISO 8339	0.40 MPa (at 100%)	Prevents edge tearing on weak concrete
Tack-free Time	ASTM C679	≤ 180 min	Sufficient tooling and smoothing window
Cure Rate	Internal Lab	3 – 5 mm / 24h	Fast deep through-cure
Elongation at Break	ISO 8339	≥ 600%	High recovery without tearing
Service Temp	Chamber	-40℃ to +80℃	All-weather civil engineering performance

📋 Official TDS, MSDS and third-party laboratory reports available on request:

Download TDS (PDF)
WhatsApp Tech Support

When Must You Choose PU-30 Instead of Silicone?

1. Need Over-Painting: Silicone sealants reject paint. PU-30 allows direct over-painting with architectural facade coatings.
2. Concrete Adhesion: PU forms a tough mechanical lock into concrete pores without requiring costly primer on sound surfaces.
3. Non-Staining: Silicone fluids frequently stain natural stone and granite facades. PU-30 is 100% non-bleeding.

Engineering Applications & Verification

Where PU-30 / PU-40 Polyurethane Performs

Low-modulus, high-elasticity polyurethane engineered for severe concrete expansion joint cycling, precast panel facades, and external building envelope sealing.

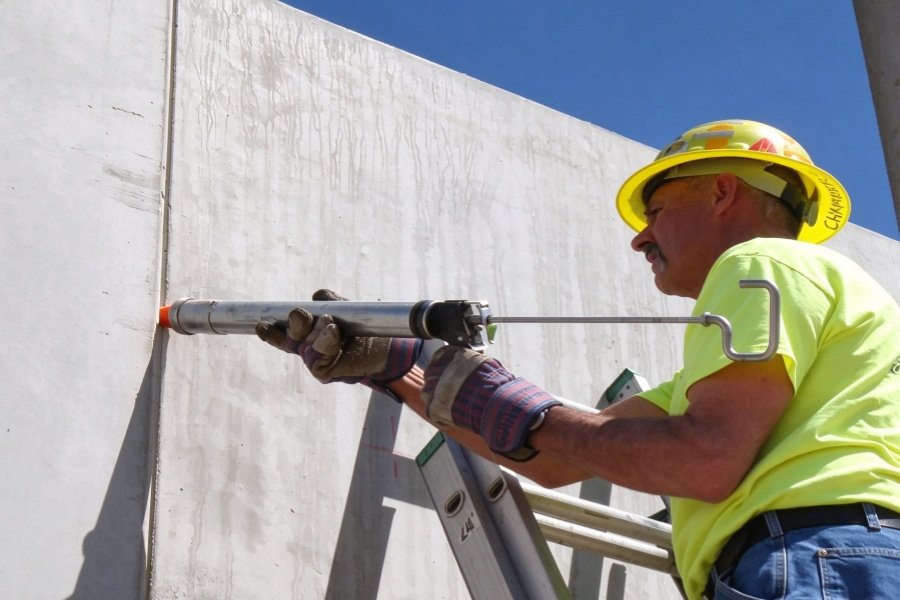

PU-40 Concrete Wall Panel Vertical Joint Caulking

Vertical Facades

Precast Concrete & PC Panels

Thixotropic non-sag formula designed for vertical and overhead exterior facade expansion joints up to 35 mm wide without slump or run-off.

Joint movement capability: ±25% (Class 25LM ISO 11600)
100% over-paintable with acrylic & elastomeric exterior coatings

Polyurethane Sealant Concrete Expansion Joint Application Closeup

Civil Infrastructure

Bridge Decks, Tunnels & Basements

Sub-grade waterproofing joints subjected to hydrostatic pressure, water immersion, and structural vibration in underground engineering.

Excellent adhesion to porous concrete without primer
Resists mold, ground water minerals, and freeze-thaw cycles

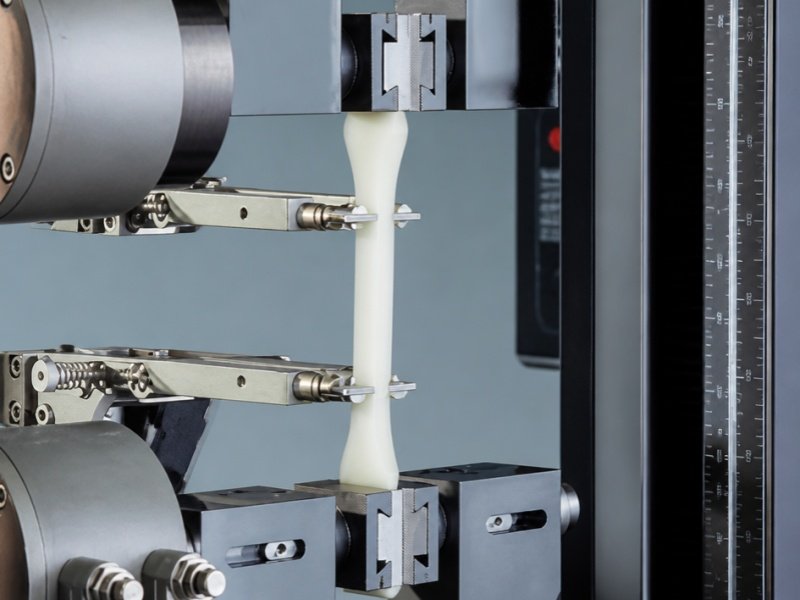

PU-40 Sealant Tensile Elongation and Recovery Lab Test

Laboratory Proven

Tensile Elongation & Elastic Recovery

Rigorous mechanical testing according to ASTM C920 and ISO 11600. Maintains continuous elastomeric memory without adhesive debonding.

Elongation at break: ≥ 800%
Elastic recovery rate: > 85% after extreme thermal expansion

Tear Resistance

Heavy-Duty Mechanical Toughness

High tear strength prevents joint sealant puncture from stones, grit, and structural shifting in airport aprons, highways, and logistics yards.

Tear strength: ≥ 8.0 N/mm (ASTM D624 Die C)
Shore A Hardness: 25 – 35 customizable for floor vs wall

Need Large Project Joint Width & Depth Sizing Advice?

Our technical application engineers calculate 2:1 width-to-depth joint ratios and backer rod specifications for commercial projects.

Export Logistics & Packaging

Packaging Specifications & 20GP Container Loading

High-barrier composite aluminum foil sausages and rigid cartridges shrink-wrapped on fumigated wooden pallets for international sea transport.

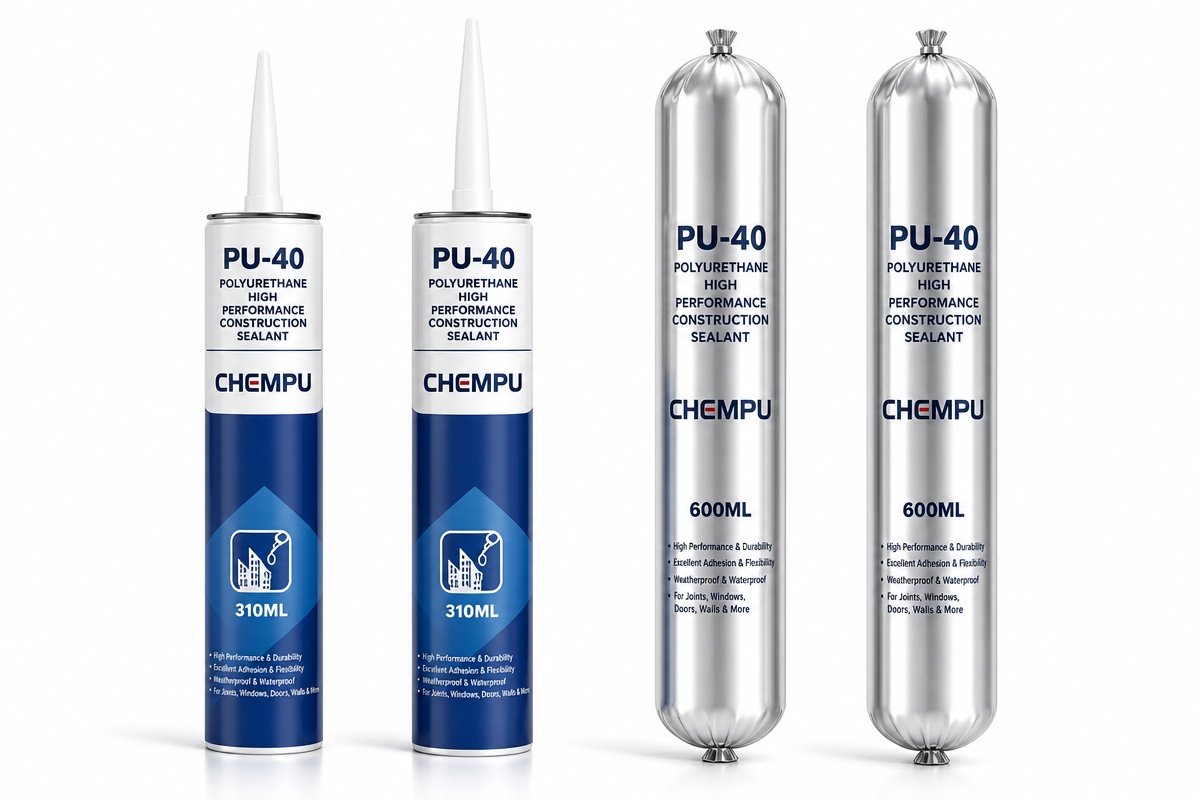

PU-40 Polyurethane Construction Sealant 600ml Sausage and Cartridge

Available Package Formats

Supplied in 600 ml composite aluminum foil sausages (20 pcs/ctn) and 310 ml rigid plastic cartridges (12 or 24 pcs/ctn) with precise extrusion nozzles.

PU-40 Polyurethane Sealant Export Pallets Sea Freight

Palletized Seaworthy Export Packing

Reinforced corner angle boards, multi-layer stretch film wrap, and desiccant packs inside pallets to guarantee zero moisture penetration during sea freight.

Full Container Load (FCL) Matrix

Specification	Units/Ctn	20GP Container
600 ml Foil Sausage	20 pcs	1,200 ctns (24,000 pcs)
310 ml Cartridge	24 pcs	1,800 ctns (43,200 pcs)
200 L Drum (Bulk)	250 kg/drum	80 drums (20,000 kg)

WhatsApp RFQ

🏷️ OEM & Formulation Customization

We produce private label polyurethane sealants for building material brands in 40+ countries:

Color Formulation: Concrete Grey, Pearl White, Deep Black, Beige, Traffic Red.
Foil Printing: Seamless 4-color custom foil sausage design with client brand & barcode.
Hardness Calibration: Shore A 25 (Facade Low Modulus) to Shore A 45 (Industrial Floor).
Climatic Stability: Anti-crystallization formulation for cold winters down to -40°C.

Shelf Life & Storage: 12 months in unopened original packaging stored between +5°C and +25°C.
