Direct Factory Supply · Model PUR-15

CHEMPU PUR-15 D4 Waterproof Polyurethane Wood Adhesive

Industrial 1-component moisture-curing polyurethane adhesive engineered for structural timber laminating, carpentry joinery, and composite panels. EN 204 D4 certified waterproof with -40°C to +120°C thermal resistance.

EN 204 D4
Boiling Proof

15 min
Initial Grab

100% Solids
Zero Solvent

-40℃~+120℃
Service Temp

Chat on WhatsApp

Verified Laboratory Properties

PUR-15 Engineering Performance Parameters

Fully tested according to international ISO, ASTM, and EN test protocols. Batch COA provided with every shipment.

Parameter	Test Method	Performance Value	Engineering Relevance
Chemical Base	1-Component Polyurethane	100% Solids Moisture-Curing	Zero solvent; cures via ambient & wood moisture
Waterproof Standard	EN 204	Class D4 Certified	Resists boiling water immersion & exterior weathering
Viscosity (23℃)	Brookfield Spindle 6	~12,000 cps	Fluid honey consistency for bead or roller application
Initial Grab / Open Time	20℃, 65% RH	15 minutes	Working window for assembling & aligning wood parts
Tack-Free Time	ASTM C679	20 – 25 minutes	Skinning point; clamp before this interval
Clamping Time	Standard Timber Joint	60 – 90 minutes	Maintains intimate contact during polyurethane set
Full Cure Time	Ambient Moisture	24 hours	Achieves ultimate structural bond strength
Service Temperature	Thermal Chamber	-40℃ to +120℃	Zero softening in hot exterior sun or saunas
Application Temp	Ambient Range	+5℃ to +35℃	Ensures optimal moisture cure reaction kinetics
Substrate Requirement	Engineering Restriction	≥ 1 Porous Substrate	Mandatory: at least one surface must be porous

📋 Full Technical Datasheet (TDS) and MSDS/SDS available in PDF.

Download PUR-15 TDS
WhatsApp Chemist

Chemical & Performance Analysis

Why Industrial Woodworkers Choose PUR-15 Over PVA & Epoxy

Single-component 100% solids polyurethane chemistry vs traditional water-based emulsions.

Key Property	CHEMPU PUR-15 (D4 PU)	Standard PVA (White Glue)	Two-Component Epoxy
Water Resistance	EN 204 D4 (Boiling Water Proof)	D2 / D3 (Softens when wet)	Waterproof but brittle
Substrate Bonding	Timber to Metal, PVC, Stone, Foam	Wood-to-wood only	Multi-substrate
Mixing & Ready Time	Ready to use (1-Component)	Ready to use (1-Component)	Messy 2-part weighing
Micro-Foaming Gap Fill	Slight expansion seals cellular gaps	Shrinks upon water drying	Non-foaming gap fill
Temperature Range	-40℃ to +120℃ (Exterior Stable)	Creeps above 60℃	-30℃ to +80℃

📐 Professional 4-Step Clamping SOP for PUR-15

1. Substrate Check
Ensure clean, dry surfaces. Rule: At least one bonding substrate must be porous (timber, cement board) to supply curing moisture.

2. Single-Side Coat
Apply thin bead or roller spread to the less absorbent surface (100–150 g/m²). Initial grab window is 15 minutes.

3. Clamp Pressure
Mate parts and apply uniform clamp pressure (0.5–1.0 N/mm²) within 20–25 minutes before tack-free skinning occurs.

4. Cure & Release
Maintain clamping for 60–90 minutes. Full structural cure reaches in 24 hours under normal atmospheric moisture.

Industrial Woodworking & Structural Timber

Where & How PUR-15 D4 Wood Adhesive Performs

Solvent-free 1-component polyurethane reactive wood glue certified to EN 204 / EN 205 Class D4. Provides 100% boiling-water resistance and structural fiber-tearing bond strength.

EN 204 D4 Certified

6-Hour Boiling Water Immersion

Surpasses European EN 204 Class D4 standard: test specimens withstand 6 hours in boiling water followed by 2 hours in cold water with ≥ 4.0 N/mm² residual shear strength.

100% moisture-curing polyurethane matrix
Outperforms conventional PVA adhesives in wet exterior conditions

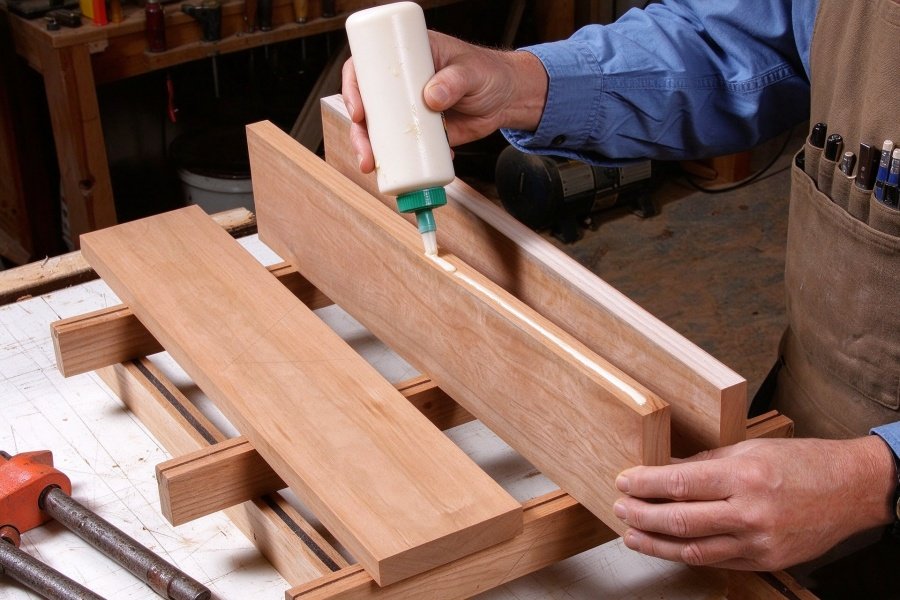

Industrial D4 Waterproof Wood Glue Outdoor Furniture Joint Closeup

Exterior Joinery

Exterior Windows, Doors & Garden Furniture

Engineered for outdoor architectural woodwork subjected to direct weather, heavy rain, UV radiation, and seasonal humidity changes.

Slight foaming action fills hairline gaps and uneven joints
Transparent glue line blends seamlessly with light timbers

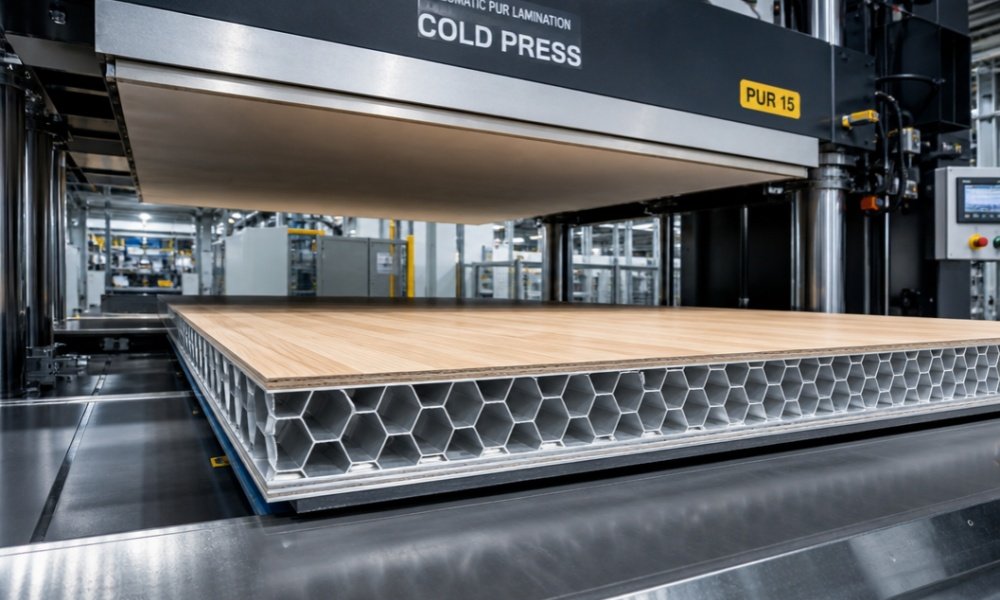

CHEMPU PUR-15 Sandwich Panel and Composite Board Lamination

Industrial Lamination

Sandwich Panels & Composite Lamination

Bonds porous and non-porous layers together: plywood, OSB, MDF, XPS foam, rockwool insulation, aluminum sheet, and HPL panels.

Open assembly time: 10 – 15 minutes at 23°C / 50% RH
Clamping press time: 45 – 60 minutes for high factory turnaround

Woodworking Joint Clamping and PUR Adhesive Application

Factory Carpentry

Mortise & Tenon, Dowels & Finger Joints

Deep penetration into hardwood, softwood, and dense tropical species (teak, iroko, oak). Creates structural joints stronger than the timber itself.

Shear strength: ≥ 10.5 N/mm² (wood failure 100%)
WATT 91 heat resistance: ≥ 7.0 N/mm² at 80°C

Request D4 Boil Test Video & Factory Timber Compatibility Sample

Send timber specimens to CHEMPU wood lab for press time, moisture content, and shear strength verification.

Export Logistics & Packaging

Bottle & Bulk Drum Packaging Options

Supplied in 500g ergonomic squeeze bottles with precision applicator nozzles, 5kg/25kg plastic carboys, and 220kg steel drums for automated roller spreaders.

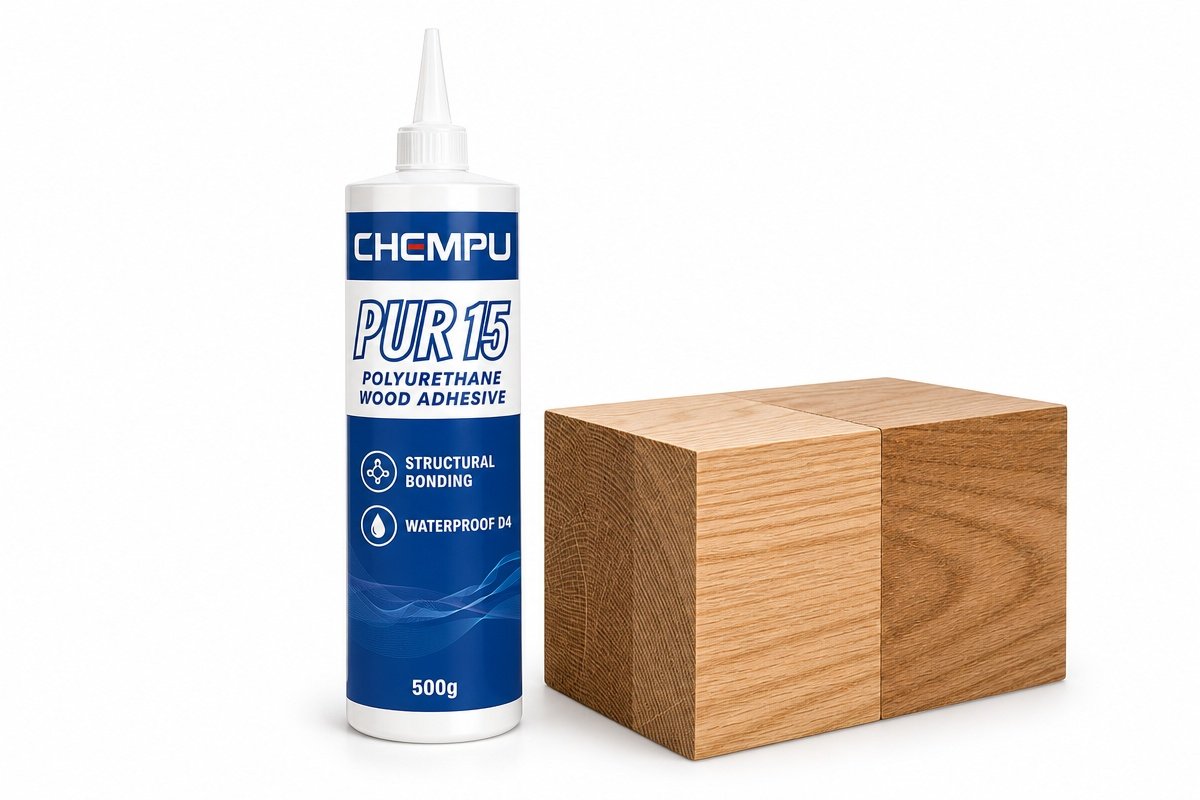

CHEMPU PUR-15 Polyurethane Wood Adhesive 500g Bottle and Bonded Timber Sample

500g Workshop Squeeze Bottle

High-density polyethylene bottle with resealable airtight nozzle tip. Prevents premature atmospheric moisture curing inside the bottle.

CHEMPU PUR-15 Wood Adhesive Bulk Carton Pallet Export

Export Master Cartons on Pallets

24 bottles per master carton packed with partition dividers, stretch wrapped and banded onto ISPM-15 export pallets for global sea freight.

Container Loading Specifications (20GP)

Packaging	Carton Configuration	20GP Container
500 g Squeeze Bottle	24 bottles / ctn (12 kg)	1,500 ctns (36,000 bottles)
5 kg Plastic Jug	4 jugs / ctn (20 kg)	900 ctns (3,600 jugs)
220 kg Steel Drum	4 drums / pallet	80 drums (17,600 kg)

WhatsApp RFQ

🏷️ Private Label Bottle Customization

We package private label D4 wood glues for timber coating and woodworking tooling brands:

Open Time Tuning: 5-min fast set (shop carpentry) to 30-min long open time (large panels).
Bottle Labeling: Full-body shrink sleeves or high-gloss PP synthetic waterproof stickers.
OEM MOQ: Starting from 3,000 bottles with custom branded master cartons.

Storage & Shelf Life: 9 months stored in airtight original containers in dry storage between +10°C and +25°C.
