Direct Factory Supply · Model XYT928

XYT928 High Performance Structural Silicone Sealant

Neutral cure, high-modulus structural glazing silicone sealant designed for architectural glass curtain walls, factory unitized facade glazing, and structural metal bonding. Complies with ASTM C1184 with 0.90 MPa tensile strength.

0.90 MPa
Tensile Strength

44 Shore A
Structural Hardness

165%
Elongation at Break

Complies
ASTM C1184

Chat on WhatsApp

Verified Laboratory Properties

XYT928 Engineering Performance Parameters

Fully tested according to international ISO, ASTM, and EN test protocols. Batch COA provided with every shipment.

Parameter	Test Method	Performance Value	Engineering Relevance
Chemical Base	Neutral Silicone	1-Component RTV Neutral	Non-corrosive to architectural glass coatings & metals
Tensile Strength	ASTM C1184	0.90 MPa (Std ≥0.60 MPa)	Exceptional structural safety margin for wind load transfer
Hardness (Shore A)	ASTM D2240	44 Shore A	High modulus resists structural bite deformation
Elongation at Break	ASTM C1184	165%	Absorbs dynamic building sway and thermal expansion
Tack-Free Time	ASTM C679	30 – 60 minutes	Ideal shop glazing tooling and handling window
Cure Rate (23℃, 50% RH)	Internal Lab	2 – 3 mm / 24 hours	Deep section through-cure for structural bites
Specification Compliance	Industry Standard	Complies with ASTM C1184	Verified for architectural structural glazing applications
Service Temperature	Chamber	-50℃ to +150℃	Uncompromised elasticity across global climate extremes

📋 Full Technical Datasheet (TDS) and MSDS/SDS available in PDF.

Download XYT928 TDS
WhatsApp Chemist

Structural Silicone (XYT928) vs Weatherproof Silicone (XYT926)

• Structural Glazing Sealant (XYT928): High tensile modulus (0.90 MPa) engineered to bear structural wind loads, seismic forces, and dead load weight. Must never be substituted with standard caulk.
• Weatherproofing Sealant (XYT926): Low-to-medium modulus (0.70 MPa, ±25% movement) designed to seal exterior joints against rainwater and air leakage without stressing the substrate.

Safety Engineering Note: CHEMPU provides project-specific structural bite calculations and adhesion testing on actual glass/metal samples before project commencement.

Engineering Applications & Verification

Where & How XYT928 Structural Silicone Performs

Engineered for high-stress curtain wall facades, factory structural glazing, and architectural glass bonding requiring verified tensile strength and ASTM C1184 compliance.

Curtain Wall Structural Glazing Assembly with XYT928 Sealant

Factory Assembly

Unitized Curtain Wall Glazing

Factory-controlled 2-sided and 4-sided structural bonding adhering insulated glass units (IGU) directly to anodized and PVDF aluminum framing mullions.

Zero-sag pasty extrusion under pneumatic guns
Accommodates thermal movement and heavy wind shear

QC Adhesion Peel Test

Aluminum & Glass Adhesion Testing

100% cohesive failure verification in our analytical laboratory on project-specific coated glass and architectural metal substrates prior to mass supply.

Peel strength: > 5.0 N/mm on clean aluminum
Free compatibility & adhesion test service for contractors

XYT928 Structural Silicone ASTM C1184 Test Report and Certificate

ASTM C1184 Certified

Certified Tensile Strength & Quality

Full compliance with international standards ASTM C1184 (Standard Specification for Structural Silicone Sealants) and GB 16776 architectural specifications.

Tensile strength at break: ≥ 0.90 MPa
Elongation at break: ≥ 150% with high elastic recovery

Curtain Wall Structural Silicone Joint CAD Engineering Drawing

CAD Joint Design

Skylights, Glass Fins & Canopy Ribs

Calculated structural bite and joint thickness engineering for overhead glass roofs, spider glass facades, and cantilevered glass structures exposed to UV.

Structural bite ratio ≥ 6 mm based on wind load calculations
Resists permanent water immersion and ozone degradation

Need Structural Bite Calculation & Substrate Adhesion Testing?

Send us your facade elevation CAD drawings and substrate samples. CHEMPU Laboratory provides full compatibility reports within 72 hours.

Export Logistics & Packaging

Packaging Specifications & 20GP Container Loading

Standard fumigated export wooden pallets, multi-layer corrugated master cartons, and hermetic foil sausage barriers engineered for cross-ocean container shipping.

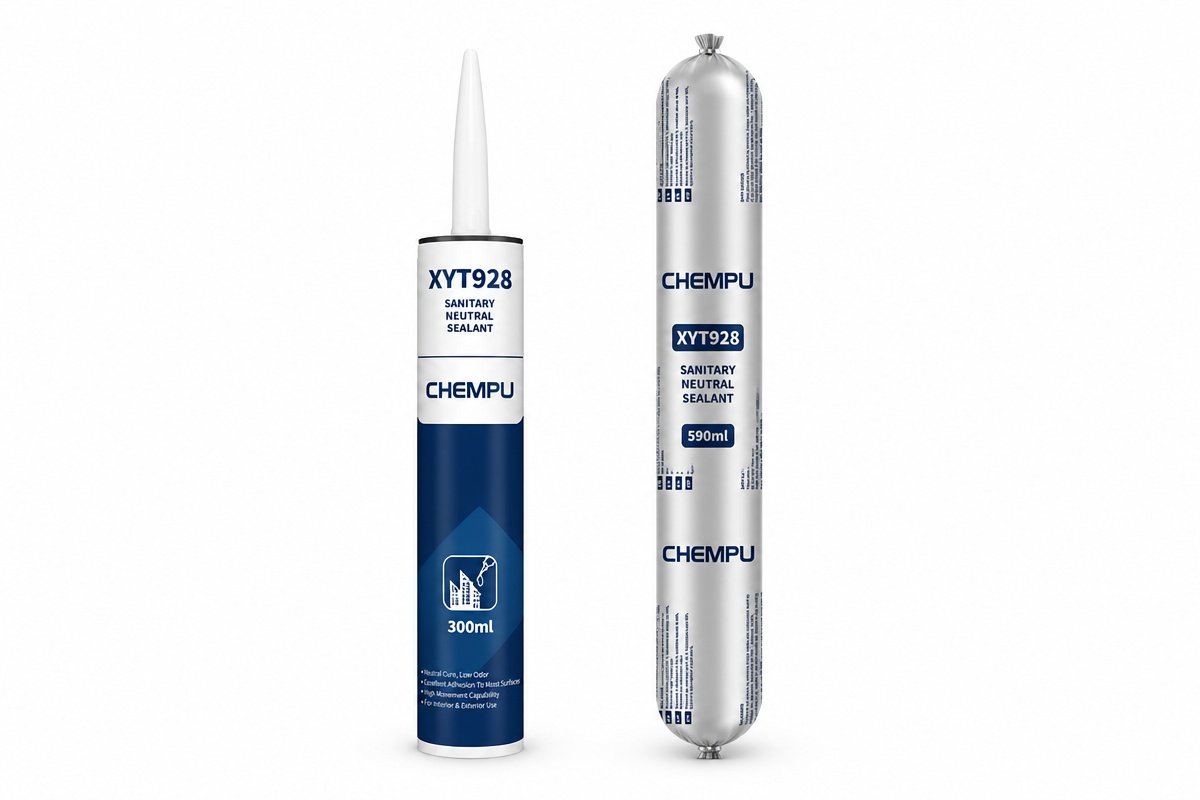

XYT928 Structural Silicone Sealant 300ml Cartridge and 590ml Sausage Pack

Available Package Formats

Supplied in 300 ml HDPE rigid plastic cartridges (24 pcs/carton) and 590 ml / 600 ml composite foil sausages (20 pcs/carton) for pneumatic caulking guns.

XYT928 Structural Silicone Carton and Pallet Shipping Packaging

Palletized Seaworthy Export Packing

Heavy-duty stretch film wrap with plastic corner edge protectors. Solid fumigated wooden pallets meet ISPM-15 quarantine standards worldwide.

Full Container Load (FCL) Matrix

Specification	Units/Ctn	20GP Container
300 ml Cartridge	24 pcs	1,800 ctns (43,200 pcs)
590 ml Foil Sausage	20 pcs	1,200 ctns (24,000 pcs)
200 L Industrial Drum	250 kg/drum	80 drums (20,000 kg)

WhatsApp RFQ

🏷️ OEM & Private Label Services

We support distributor brands and building material importers with turn-key private label manufacturing:

Cartridge Printing: High-definition silkscreen & offset printing for client logo & barcode.
Custom Colors: Standard Black, Grey, White + customized RAL color matching.
Formulation Tuning: Modulus and tack-free adjustment tailored to tropical/cold climates.
Export Port: FOB Shanghai Port / Ningbo Port, China. Fast 15-20 days container delivery.

Shelf Life & Storage: 12 months from production date stored below 27°C in cool, dry warehouse conditions.
